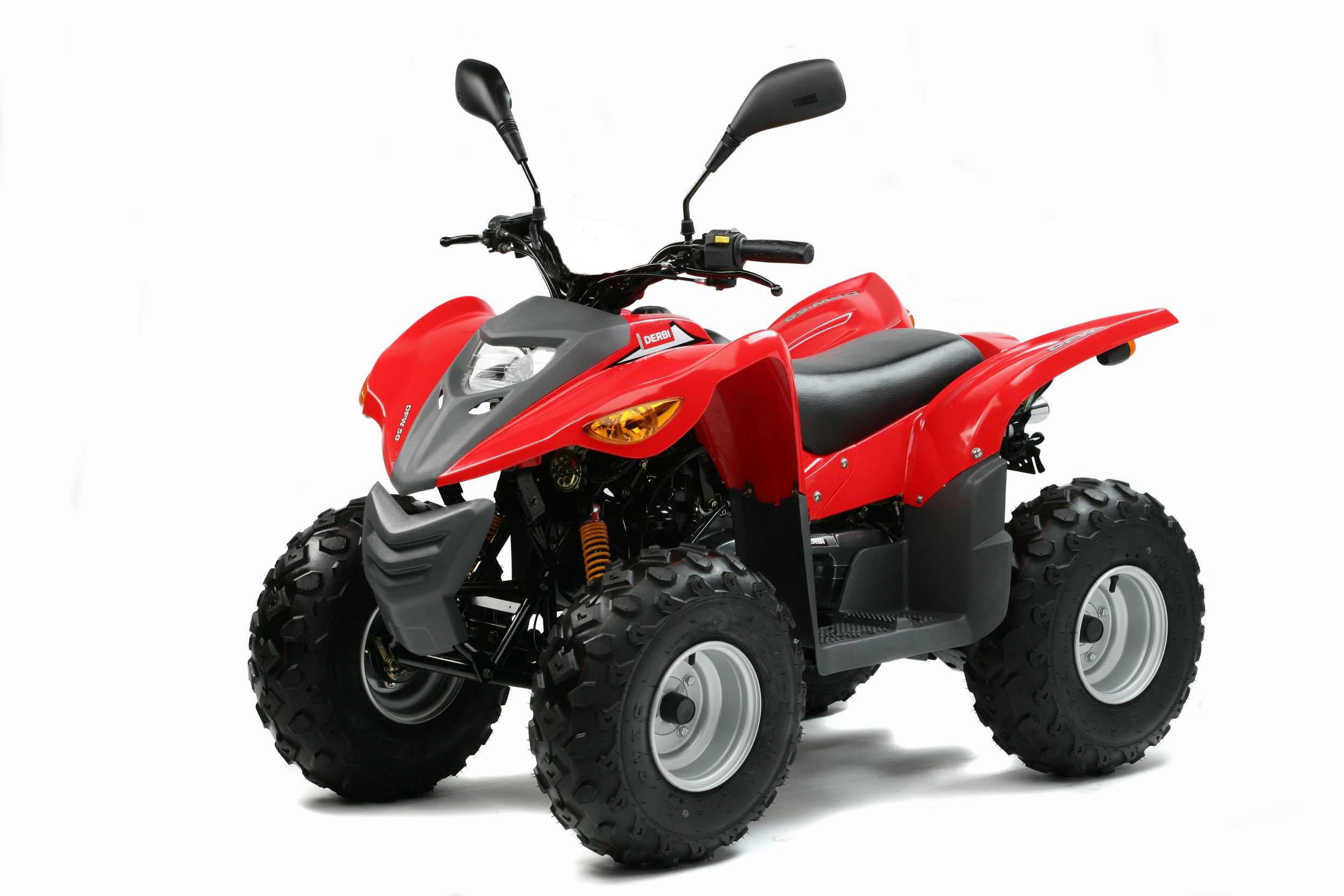

HERCHEE-ADLY 2000W ATV
With Rear Differential / Reducer
Designed for daily transportation to replace two wheels motorcycle, offer a safely and joyfully drive. Front and rear light ensure make it noticeable. Rare Differential make it easy to control.
|
規格表/Specification |
|
|
電機規格/Motor |
Safety：CE、IP67, Rated Power：2000W Maximum Power：4000W Torque：13.0 Nm at 2900 min-1 |
|
電池/Battery |
Type：Ternary Lithium Battery Safety：CE Capacity：72V/27Ah |
|
控制器規格/Controller |
Safety：CE、IP67 Input：DC 72V |
|
充電器規格/Charger |
Safety：CE、IP65 Input：AC100V ~ AC240V |
|
充電時間/Charging Hour |
4-6 HR |
|
減速機比數/Reducer Ratio |
5.2 |
|
前後大燈規格/Front/Rear Lights |
LED |
|
前後方向燈規格/Front/Rear Direction Lights |
Bulb |
|
傳動方式/Drive System |
Reduction gear + Chain Drive, Differential |
|
齒輪油規格/Gear Oil |
80# |
|
車身長/Length |
1575 mm |
|
車身寬/Width |
850 mm |
|
車身高/Height |
960 mm |
|
座位高/Seat Height |
740 mm |
|
軸距/Wheel Base |
1020 mm |
|
淨重/Net Weight |
125kg with battery |
|
爬坡坡度/Gradeability |
30 % |
|
前懸吊/Front Suspension |
Independent A-Arm |
|
後懸吊/Rear Suspension |
Single arm w/5 way adjustable |
|
前剎車方式/Front Brake |
Hydraulic Discs / right hand lever operation |
|
後剎車方式/Rear Brake |
Hydraulic Disc /pedal operation with foot brake |
|
最高速時速/Max. Speed |
45 Km/h |
|
續航里程/Range |
52km@30km/h constant speed on the road |
|
前輪/後輪規格/Front/Rear Tire |
19x7.00-8 |
|
檔位/Gears position |
P: 停車檔/Parking Gear Gear: 1st / 2nd / 3rd Gear R: 倒車檔/Reverse Gear |
|
各檔最高速度/ Maximum Speed by Gear |
1st Gear：20 KM/H 2nd Gear：30 KM/H 3rd Gear：45 KM/H Reverse Gear：5-8 KM/H |

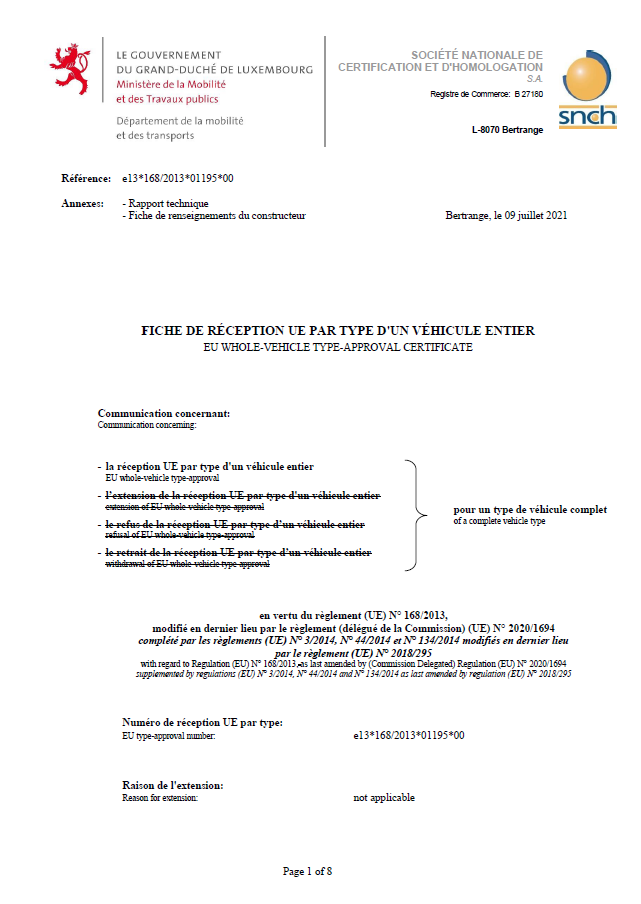

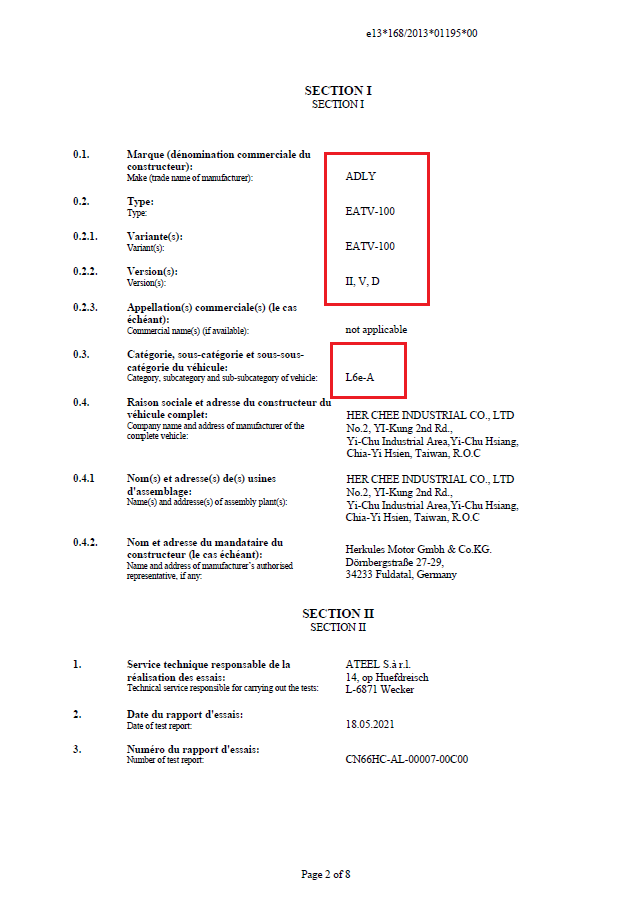

L6e certificate approved
UKCA certificate approved
CE certificate approved
