DELIVERY ATV

ATV-320TF Loading Zoom, please wait

ATV-320TF(EFI)

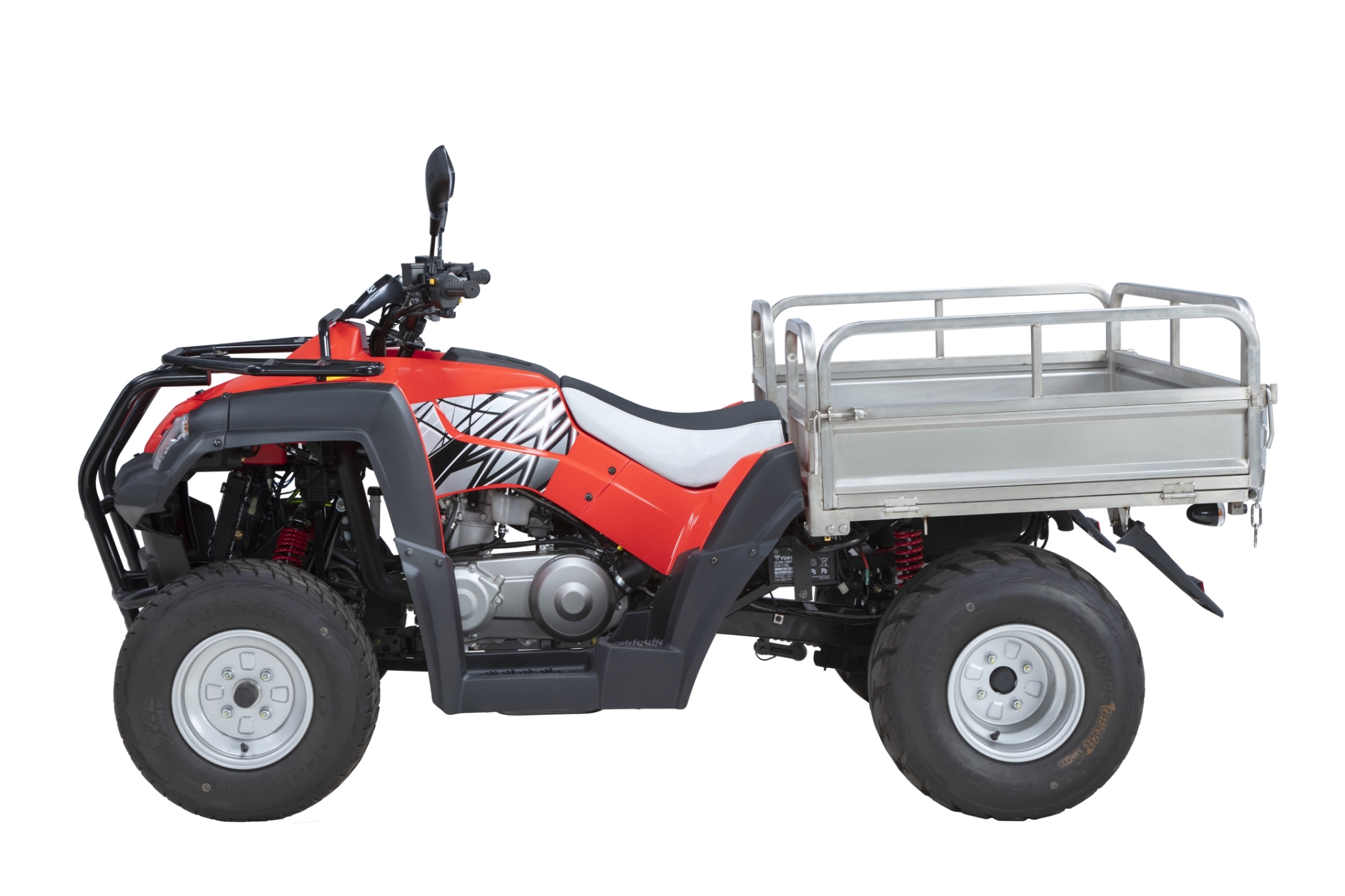

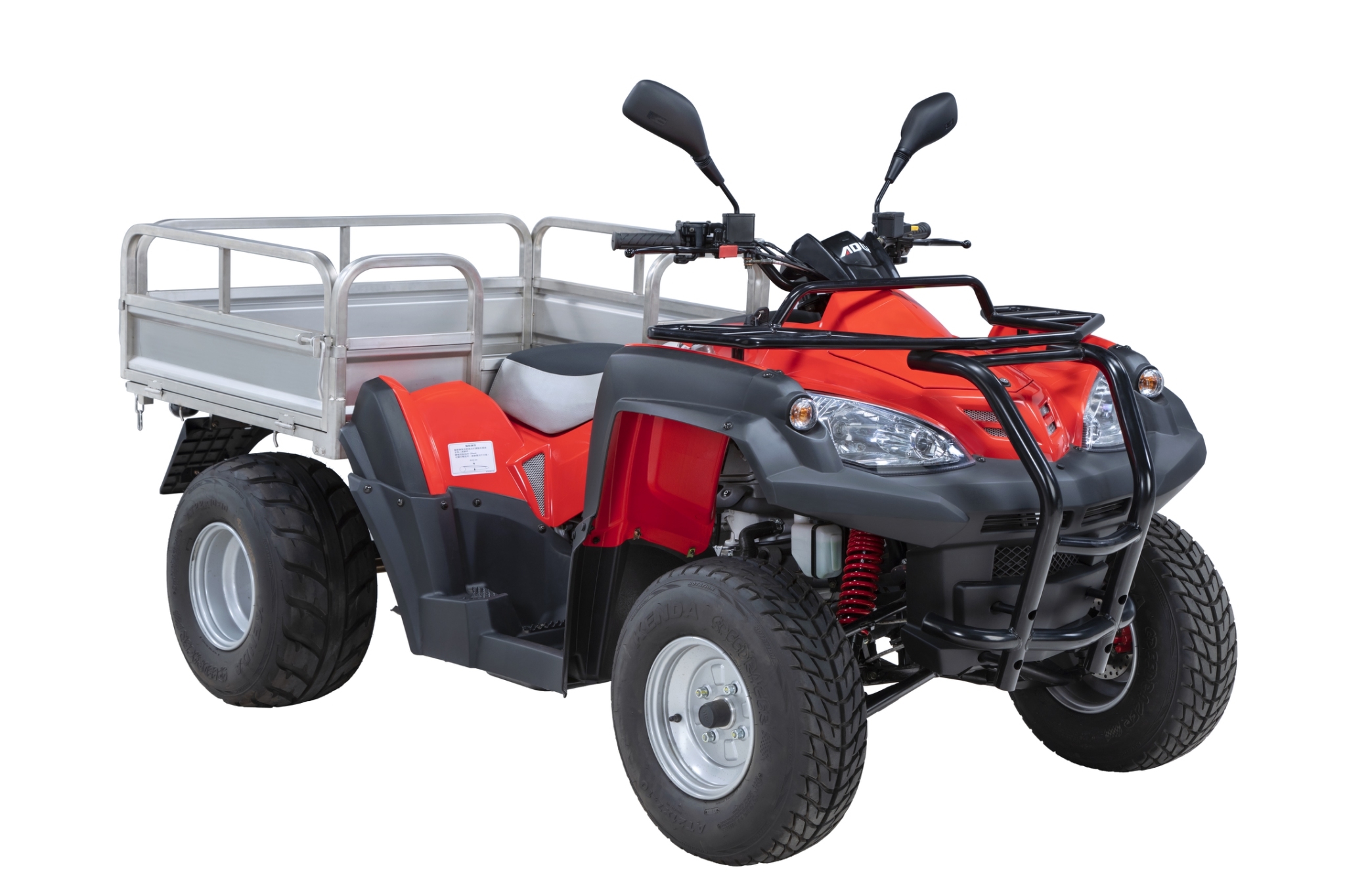

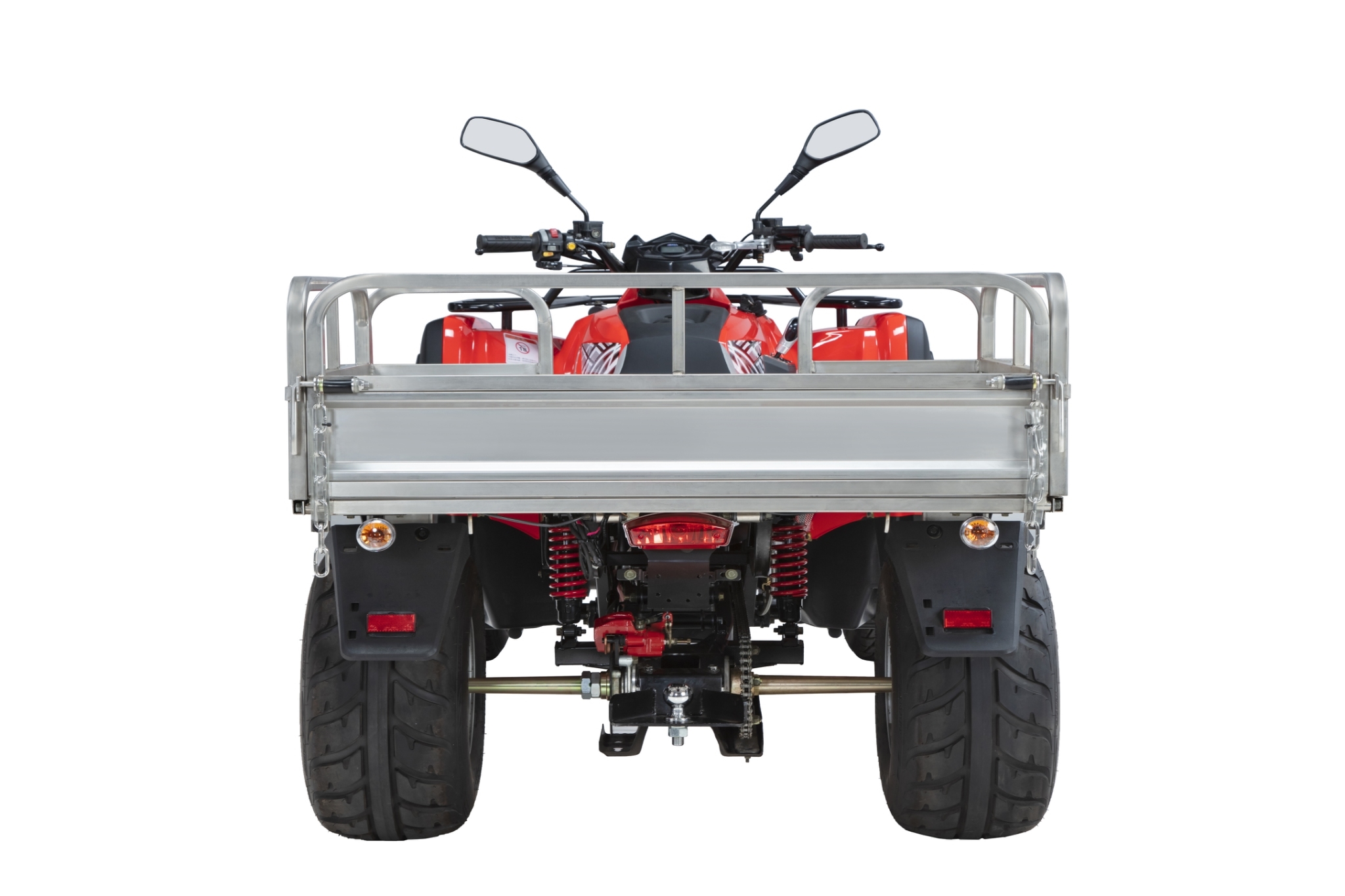

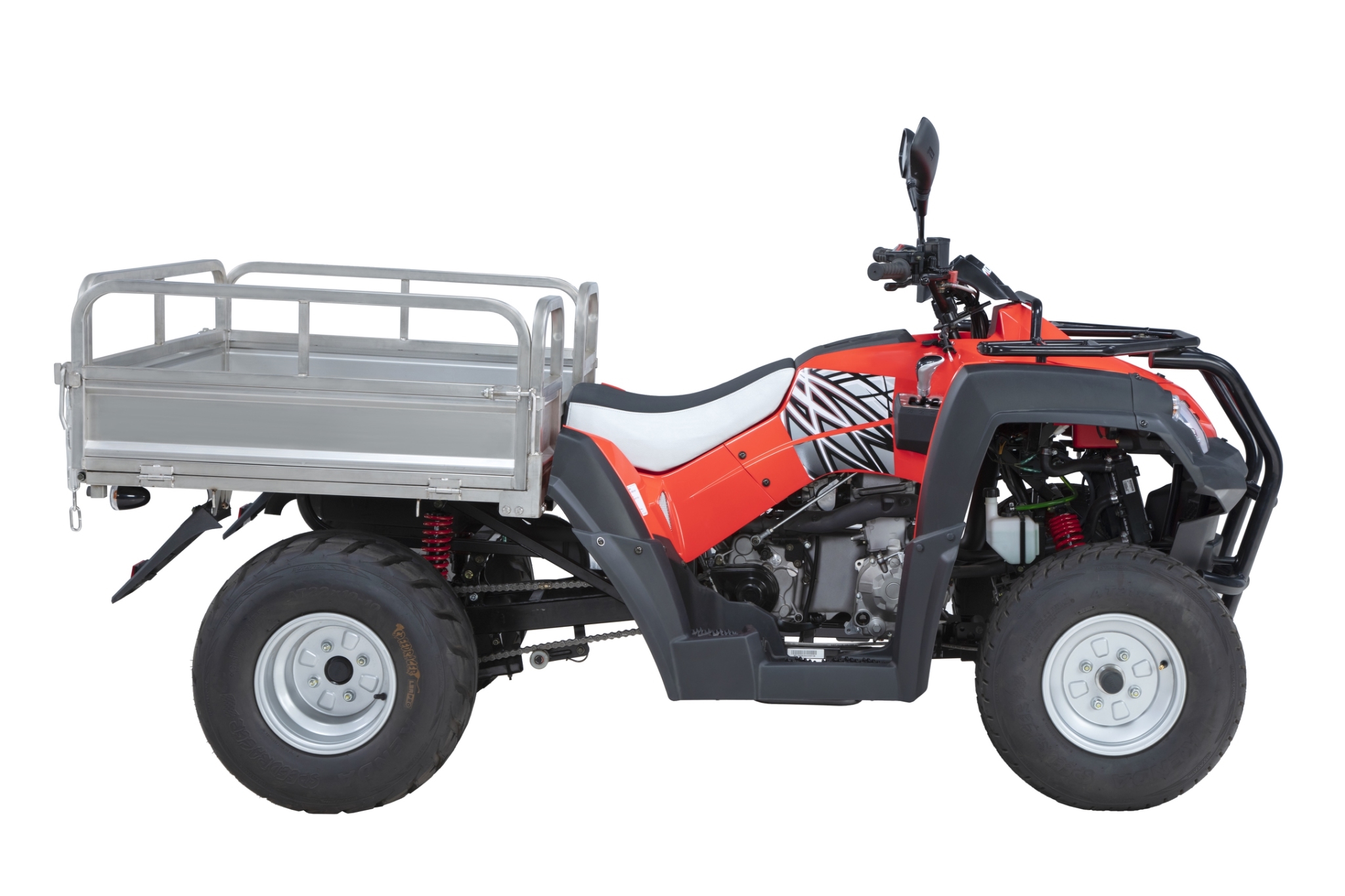

HERCHEE-ADLY Agricultural Delivery ATV-320TF, easy for transportation!


The low centre of gravity makes sure that 320TF moves stable, even when the trailer unit is filled to capacity over bumpy terrain. The rear bucket can be easily tipping with the supporter, and allowing the user to maintain the bike simply.


320TF gets more torque by the large gear ratios, and be able to carring the heavy work with ease. By its impressive performance and carrying capacity, 320TF is truly a workhorse to make your life not only easier, but cheaper during the toughest of jobs.

Specification

MODEL TYPE ATV-320TF
DISPLACEMENT 272 c.c.
ENGINE TYPE 4 STROKE, SOHC, 4 VALVE, Ceramic Cylinder
COOLING Liquid Cooled
STARTING Electric
LUBRICATION Wet Sump
TRANSMISSION CVT with H,L,N,R Gear
FUEL TANK 10.5 Liter
DIMEENSION vehicle: 2350X1150X1120mm / truck: 880x1050x2000mm
SEAT HEIGHT 810 mm
WHEEL BASE 1940 mm
FRONT BRAKE Double Disc Brake
REAR BRAKE Disc Brake
FRONT SUSPENSION Double A-Arm with Preload Adjustable Shock
REAR SUSPENSION Swing Arm with Preload Adjustable Shock
FRONT TIRE 22x7-10
REAR TIRE 22x11-10
WEIGHT 297 kg

※ Specification is subject to change without notice!
